Recurrent Network
Recurrent Neural Network¶
Sequence Modeling¶
- 我们需要 sequences
- Language Modeling

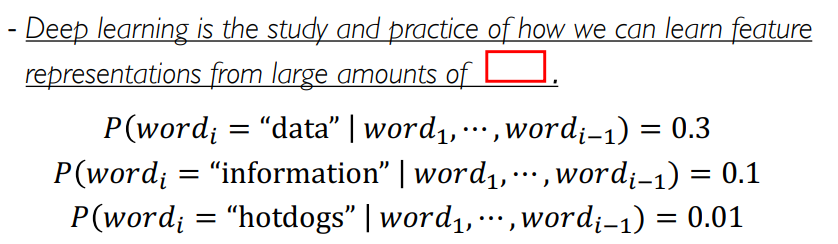

Language Modeling¶
我们需要建模一个概率分布，给定之前 \(i\) 个词，建模第\(i\)个词的概率分布。
What If MLP¶
把所有词向量 concat 起来，然后扔进 MLP 中，输出的大小为 Vocabulary Size，然后在里面 Sample。

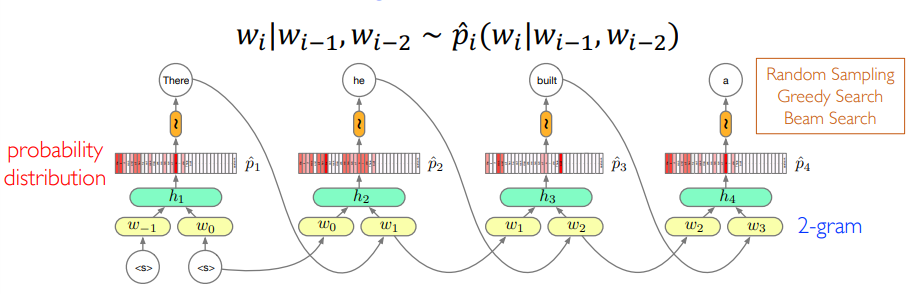

2-gram LM Model
这显然会有很多缺点 - Parameter explosion - There is a limit on the longest dependencies that can be captured.

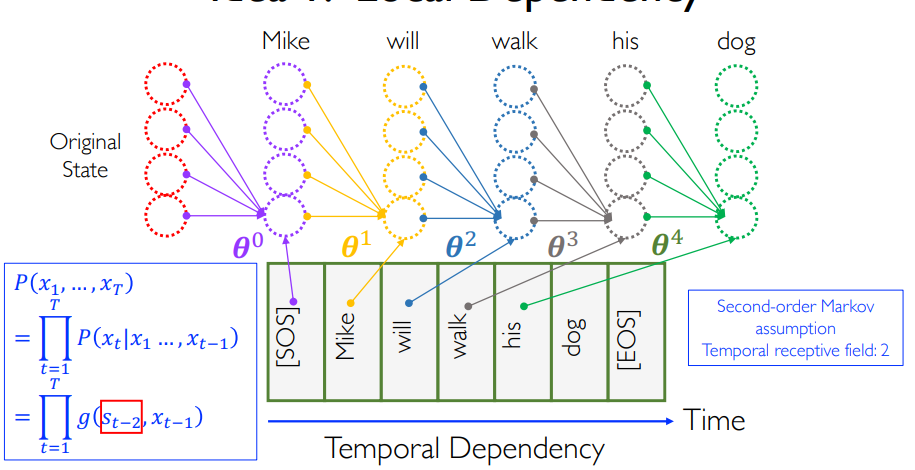

Idea 1: Local Dependency¶
\[ P(x_1,\cdots,x_T) = \prod_{t = 1}^{T} P (x_t \mid x_1,\cdots,x_{t-1}) = \prod_{t=1}^{T} g(s_{t-2},x_{t-1})\]
我们认为 \(t - 2\) 之前的信息可以编码进一个隐变量 \(s\) 中，于是用 \(\prod_{t=1}^{T} g(s_{t-2},x_{t-1})\) 做近似。
- [Local Dependency Assumption]: The sequential informational of all previous timestamps can be encoded into one hidden representation.

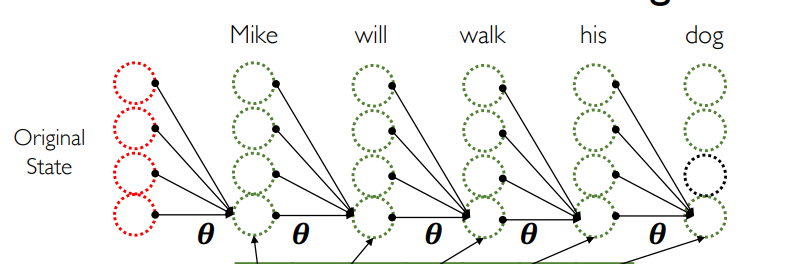

Idea 2: Parameter Sharing¶
- [Temporal Stationarity Assumption]: If a feature is useful at time \(t_1\)，then it should also be useful for all time stamps \(t_2\)
这有时会导致出现 over smoothing 的事情，无法对很有特点的事情进行描述。

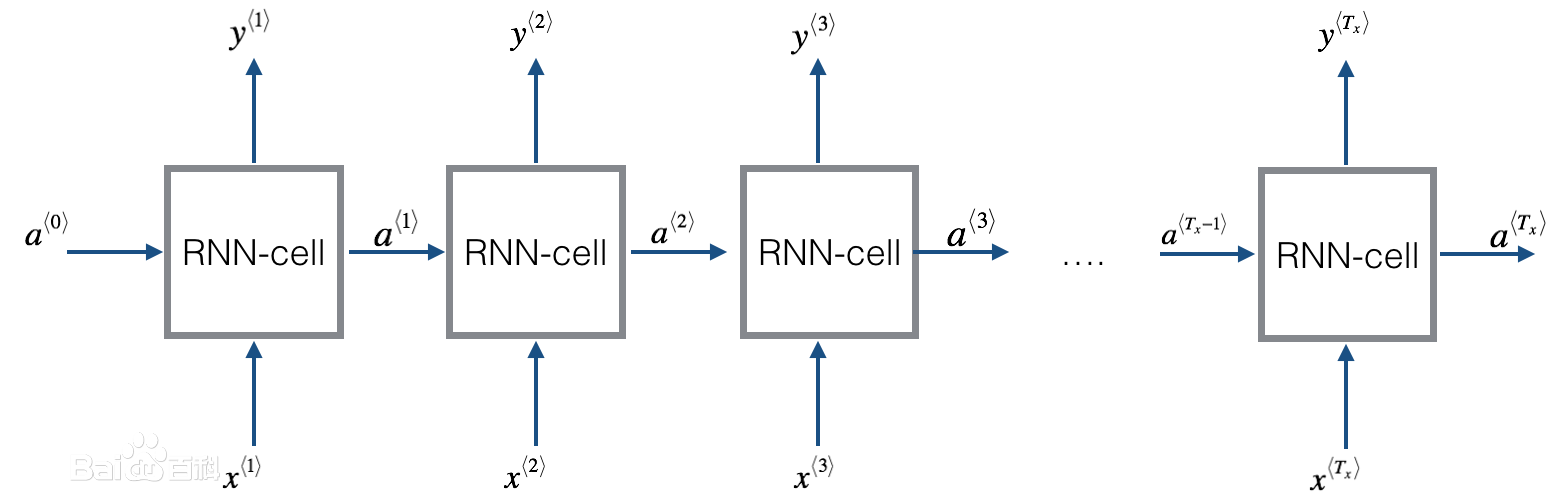

Recurrent Neural Network (RNN)¶
一个 RNN cell 就是一个 MLP 加上一个 \(h_{t-1}\) ， 多输出一个 \(h_t\)，也就是前面所说的编码起来的信息。
把这些东西拼起来。
Recurrent Layer¶
数学上的表示就是
\[ y_t = V h_t \]
\[ h_t = f_W (h_{t-1}, x_t) \]
Bidirectional RNN¶
发扬上面的精神，从后面也拉一波过来

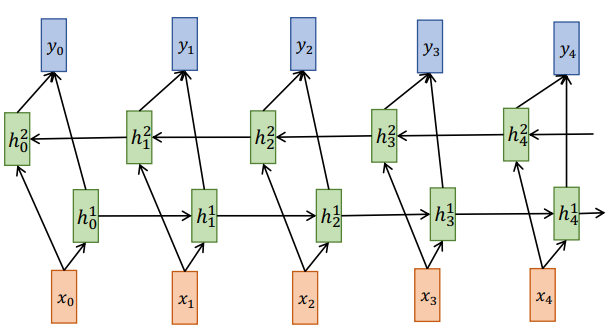

Deep RNN¶
加层，多整几个隐藏层，竖着加隐藏层，横着在时间轴上多整几个 RNN Cell。
RNN for LM¶
n-gram LM Model
Standard Architectures¶
- many to one: Sentiment Classification
- one to many: Image Captioning
- many to many (heterogeneous): Machine Translation
- many to mang (homogeneous): Language Modeling
One to Many¶
常用于图像描述等问题。
Challenges:
- Long-term dependency: which word corresponds to which region
- Heterogeneous input and output: from image to text generation
Sequence to Sequence¶
Many-to-One + One-to-Many
- Encoder: many to one
- Decoder: one to many
information bottleneck
Beam Search¶
Back-Propagation Through Time¶
- RNNs are particularly unstable due to te repeated mulitplication by the same weight matrix.
Exploding and Vanishing Gradient¶
Exploding Gradient: Gradient Clipping¶
\[g := \frac{\partial \epsilon}{\partial \theta}\]
如果 \(\Vert g \Vert\) 大于某个阈值，就给它 normalize 成一个给定的阈值。
Vanishing Gradient: Identity Initialization?¶
Not work well

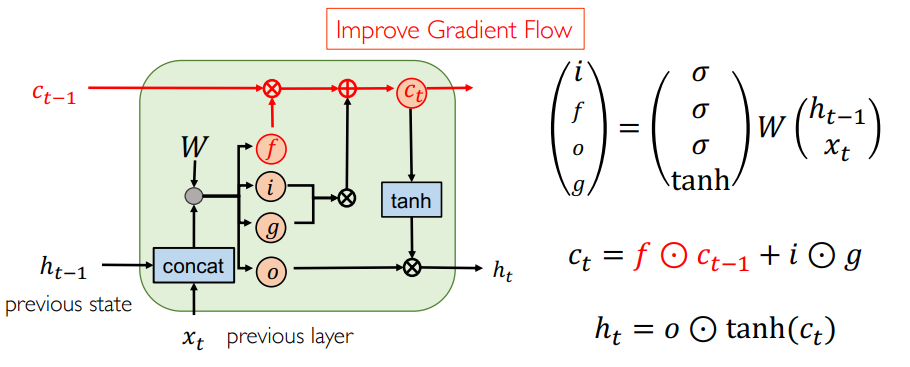

Long Short-Term Memory (LSTM)¶
Hochreiter and J. Schmidhuber. Long short-term memory,1995
